USB 3.0 Cameras
Ultra compact:
one of the smallest USB 3.0 cameras in the world - less than one cubic inch volume, cylinder-shaped
Fits into places where no other camera can fit
Can be installed with the optics in a tube
Lightweight:
weighs only 20 grams (0.7 oz)*
Perfect for autonomous systems like robots, aerospace applications etc.
Extremely fast:

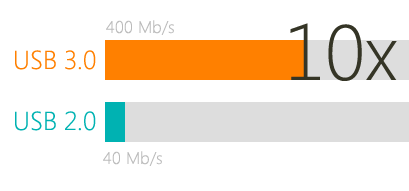

USB 3.0 interface allows data rate up to 400 MBytes per second (10 times faster than USB 2.0)
Especially well-suited to use in multi-camera systems and 3D applications, as well as for fast process capturing
Robust:
unibody aircraft grade aluminum housing with a screw lock for USB cable, as well as shockproof electronic design allows the camera to survive 32 g of sinusoidal vibration and 6000 g shock tests **
Highly reliable even in harsh, demanding environments
Efficient and cool:
less than 1 W power consumption through the USB cable
Increases battery lifetime for autonomous devices with the camera onboard
No additional heat sinks required due to low heat generation
Connectivity:
programmable general purpose TTL input/output and triggering options
Can be easily integrated into your system or synchronized with other cameras
Compatibility:
comes with a set of software examples included into the SDK, is compatible with popular vision and image processing libraries and third party software like Labview, MATLAB, HALCON etc.
Simplifies integration into existing systems, no need to employ highly-qualified software developers
USB 2.0 High Speed mode support:
backward compatible to USB 2.0
Enables an old system without a USB3.0 interface to utilize new generation cameras
* CS-mount, without accessories
** Maximum tested values - consult with Sumix prior to using the camera under high g-force
Models
| Camera model | CMOS sensor type | Optical format of sensor |
Active pixels | Pixel size, μm |
Shutter type | fps | Color/ Mono |
Bit depth | Lens mount |
|
|---|---|---|---|---|---|---|---|---|---|---|
| SMX-15M5M | 5 Mpixel CMOS | 1/2.5 " | 2592 × 1944 | 2.2 × 2.2 | Rolling, Global Start Shutter | 14 | Mono | Selectable, 8 bits or 12 bits |
C/CS | |
 Monochrome 5 megapixel (2592 × 1944) CMOS camera with USB 3.0 interface. Designed for industrial and scientific applications
US $640What's in the box:
Output Video and Camera ControlMaximum resolutions of output window:
2592 × 1944
Frame rate at resolution (96 MHz):
14 fps at 2592 × 1944
63 fps at 1024 × 768 124 fps at 640 × 480 Output bits per pixel:
Selectable, 8 bits or 12 bits
Lookup table:
Downloadable for user selected 8 bits mode: converts 12 bits of imaging chip's ADC to 8 bits of output
Pixel rates:
6-96 MHz
Exposure range (at maximum resolution), ms:
min: 0.029 (at 96 MHz); max: 1000 (at 6 MHz)
Pixel gain control:
Programmable hardware gain controls: 161 gain levels from 1 to 128
From 1 to 4 with increment 0.125; from 4.25 to 8 with increment 0.25; from 9 to 128 with increment 1 Output window modes:
View port (from 2592 × 1944 to 8 × 8 with 4 pixels/2 lines step positioning)
Frame Decimation (1:1, 1:2, 1:3, 1:4, 1:6), hardware Frame Binning (1:2, 1:4), hardware Horizontal and Vertical flipping, hardware Gamma, brightness and contrast control:
Programmable with lookup table
Imaging ChipType:
Monochrome 5 megapixel CMOS sensor with an optical format of 1/2.5 inch manufactured by Aptina Imaging Corp.
Pixel size:
2.2 µm × 2.2 µm
Image array size:
7.13 mm diagonal
Shutter:
Rolling, Global Start Shutter (for Snapshot mode only)
Scanning mode:
Progressive
ADC resolution:
12 bits
Sensitivity:
1.4 V/lux-sec (550nm)
Dynamic Range:
70.1 dB
Camera ElectricalSupply voltage:
5 V supplied by USB 3.0 interface
Power consumption:
less than 1 W (depends on operating modes)
Camera Interface Interface Type:
USB 3.0
Connector Type:
USB 3.0 micro-B with locking screws USB 2.0 HighSpeed interface, micro-B connector compatible |
||||||||||
| SMX-15M5C | 5 Mpixel CMOS | 1/2.5 " | 2592 × 1944 | 2.2 × 2.2 | Rolling, Global Start Shutter | 14 | Color | Selectable, 8 bits or 12 bits |
C/CS | |
 Color 5 megapixel (2592 × 1944) CMOS camera with USB 3.0 interface. Designed for industrial and scientific applications
US $640What's in the box:
Output Video and Camera ControlMaximum resolutions of output window:
2592 × 1944
Frame rate at resolution (96 MHz):
14 fps at 2592 × 1944
63 fps at 1024 × 768 124 fps at 640 × 480 Output bits per pixel:
Selectable, 8 bits or 12 bits
Lookup table:
Downloadable for user selected 8 bits mode: converts 12 bits of imaging chip's ADC to 8 bits of output
Pixel rates:
6-96 MHz
Exposure range (at maximum resolution), ms:
min: 0.029 (at 96 MHz); max: 1000 (at 6 MHz)
Pixel gain control:
Programmable hardware gain controls: 161 gain levels from 1 to 128
From 1 to 4 with increment 0.125; from 4.25 to 8 with increment 0.25; from 9 to 128 with increment 1 Output window modes:
View port (from 2592 × 1944 to 8 × 8 with 4 pixels/2 lines step positioning)
Frame Decimation (1:1, 1:2, 1:3, 1:4, 1:6), hardware Frame Binning (1:2, 1:4), hardware Horizontal and Vertical flipping, hardware Gamma, brightness and contrast control:
Programmable with lookup table
Imaging ChipType:
Color 5 megapixel CMOS sensor with an optical format of 1/2.5 inch manufactured by Aptina Imaging Corp.
Pixel size:
2.2 µm × 2.2 µm
Image array size:
7.13 mm diagonal
Shutter:
Rolling, Global Start Shutter (for Snapshot mode only)
Scanning mode:
Progressive
ADC resolution:
12 bits
Sensitivity:
1.4 V/lux-sec (550nm)
Dynamic Range:
70.1 dB
Camera ElectricalSupply voltage:
5 V supplied by USB 3.0 interface
Power consumption:
less than 1 W (depends on operating modes)
Camera Interface Interface Type:
USB 3.0
Connector Type:
USB 3.0 micro-B with locking screws USB 2.0 HighSpeed interface, micro-B connector compatible |
||||||||||

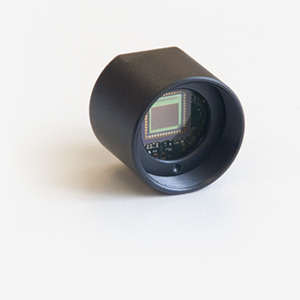

| SMX-16E1M | 1.3 Mpixel CMOS | 1/1.8 " | 1280 × 1024 | 5.3 × 5.3 | Rolling, Global Shutter | 60 | Mono | Selectable, 8 bits or 10 bits |
C/CS | |
 Monochrome 1.3 megapixel (1280 × 1024) CMOS camera with USB 3.0 interface. Designed for industrial and scientific applications
US $890What's in the box:
Output Video and Camera ControlMaximum resolutions of output window:
1280 × 1024
Frame rate at resolution (114 MHz):
60 fps at 1280 × 1024
82 fps at 1024 × 768 126 fps at 640 × 480 Output bits per pixel:
Selectable, 8 bits or 10 bits
Lookup table:
Downloadable for user selected 8 bits mode: converts 10 bits of imaging chip's ADC to 8 bits of output
Pixel rates:
4 — 114 MHz
Exposure range (at maximum resolution), ms:
min: 0.0308 (at 114 MHz); max: 1000 (at 4 MHz)
Pixel gain control:
Programmable hardware gain controls:
analog (from 1 to 8) digital (from 1 to 15.875) Output window modes:
View port (from 1280 × 1024 to 8 × 8 with 4 pixels/2 lines step positioning)
Frame Decimation: (1:1 to 1:32) hardware Frame Binning: (1:1 to 1:32) hardware Horizontal and Vertical flipping, hardware Gamma, brightness and contrast control:
Programmable with lookup table
Imaging ChipType:
Monochrome 1.3 megapixel CMOS sensor with an optical format of 1/1.8 inch manufactured by E2V
Pixel size:
5.3 µm × 5.3 µm
Image array size:
8.7 mm diagonal
Shutter:
Rolling, Global Shutter
Scanning mode:
Progressive
ADC resolution:
10 bits
Responsivity:
6600 LSB10/(Lux/s)
Dynamic Range:
>62 dB
>90 dB in HDR mode Camera ElectricalSupply voltage:
5 V supplied by USB 3.0 interface
Power consumption:
less than 1 W (depends on operating modes)
Camera Interface Interface Type:
USB 3.0
Connector Type:
USB 3.0 micro-B with locking screws USB 2.0 HighSpeed interface, micro-B connector compatible |
||||||||||

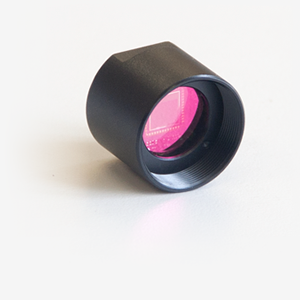

| SMX-16E1C | 1.3 Mpixel CMOS | 1/1.8 " | 1280 × 1024 | 5.3 × 5.3 | Rolling, Global Shutter | 60 | Color | Selectable, 8 bits or 10 bits |
C/CS | |
 Color 1.3 megapixel (1280 × 1024) CMOS camera with USB 3.0 interface. Designed for industrial and scientific applications
US $890What's in the box:
Output Video and Camera ControlMaximum resolutions of output window:
1280 × 1024
Frame rate at resolution (114 MHz):
60 fps at 1280 × 1024
82 fps at 1024 × 768 126 fps at 640 × 480 Output bits per pixel:
Selectable, 8 bits or 10 bits
Lookup table:
Downloadable for user selected 8 bits mode: converts 10 bits of imaging chip's ADC to 8 bits of output
Pixel rates:
4 — 114 MHz
Exposure range (at maximum resolution), ms:
min: 0.0308 (at 114 MHz); max: 1000 (at 4 MHz)
Pixel gain control:
Programmable hardware gain controls:
analog (from 1 to 8) digital (from 1 to 15.875) Output window modes:
View port (from 1280 × 1024 to 8 × 8 with 4 pixels/2 lines step positioning)
Frame Decimation: (1:1 to 1:32) hardware Frame Binning: (1:1 to 1:32) hardware Horizontal and Vertical flipping, hardware Gamma, brightness and contrast control:
Programmable with lookup table
Imaging ChipType:
Color 1.3 megapixel CMOS sensor with an optical format of 1/1.8 inch manufactured by E2V
Pixel size:
5.3 µm × 5.3 µm
Image array size:
8.7 mm diagonal
Shutter:
Rolling, Global Shutter
Scanning mode:
Progressive
ADC resolution:
10 bits
Responsivity:
6600 LSB10/(Lux/s)
Dynamic Range:
>62 dB
>90 dB in HDR mode Camera ElectricalSupply voltage:
5 V supplied by USB 3.0 interface
Power consumption:
less than 1 W (depends on operating modes)
Camera Interface Interface Type:
USB 3.0
Connector Type:
USB 3.0 micro-B with locking screws USB 2.0 HighSpeed interface, micro-B connector compatible |
||||||||||
| SMX-16E1IR | 1.3 Mpixel CMOS | 1/1.8 " | 1280 × 1024 | 5.3 × 5.3 | Rolling, Global Shutter | 60 | Mono | Selectable, 8 bits or 10 bits |
C/CS | |
|
Monochrome with High NIR Sensitivity 1.3 megapixel (1280 × 1024) CMOS camera with USB 3.0 interface. Designed for industrial and scientific applications
US $990What's in the box:
Output Video and Camera ControlMaximum resolutions of output window:
1280 × 1024
Frame rate at resolution (114 MHz):
60 fps at 1280 × 1024
82 fps at 1024 × 768 126 fps at 640 × 480 Output bits per pixel:
Selectable, 8 bits or 10 bits
Lookup table:
Downloadable for user selected 8 bits mode: converts 10 bits of imaging chip's ADC to 8 bits of output
Pixel rates:
4 — 114 MHz
Exposure range (at maximum resolution), ms:
min: 0.0308 (at 114 MHz); max: 1000 (at 4 MHz)
Pixel gain control:
Programmable hardware gain controls:
analog (from 1 to 8) digital (from 1 to 15.875) Output window modes:
View port (from 1280 × 1024 to 8 × 8 with 4 pixels/2 lines step positioning)
Frame Decimation: (1:1 to 1:32) hardware Frame Binning: (1:1 to 1:32) hardware Horizontal and Vertical flipping, hardware Gamma, brightness and contrast control:
Programmable with lookup table
Imaging ChipType:
Monochrome with High NIR Sensitivity 1.3 megapixel CMOS sensor with an optical format of 1/1.8 inch manufactured by E2V
Pixel size:
5.3 µm × 5.3 µm
Image array size:
8.7 mm diagonal
Shutter:
Rolling, Global Shutter
Scanning mode:
Progressive
ADC resolution:
10 bits
Responsivity:
13000 LSB10/(Lux/s)
Dynamic Range:
>63dB
>90 dB in HDR mode Camera ElectricalSupply voltage:
5 V supplied by USB 3.0 interface
Power consumption:
less than 1 W (depends on operating modes)
Camera Interface Interface Type:
USB 3.0
Connector Type:
USB 3.0 micro-B with locking screws USB 2.0 HighSpeed interface, micro-B connector compatible |
||||||||||
| SMX-16E2M | 2 Mpixel CMOS | 1/1.8 " | 1600 × 1200 | 4.5 × 4.5 | Rolling, Global Shutter | 50 | Mono | Selectable, 8 bits or 10 bits |
C/CS | |
|
Monochrome 2 megapixel (1600 × 1200) CMOS camera with USB 3.0 interface. Designed for industrial and scientific applications
US $890What's in the box:
Output Video and Camera ControlMaximum resolutions of output window:
1600 × 1200
Frame rate at resolution (114 MHz):
50 fps at 1600 × 1200
60 fps at 1280 × 1024 82 fps at 1024 × 768 126 fps at 640 × 480 Output bits per pixel:
Selectable, 8 bits or 10 bits
Lookup table:
Downloadable for user selected 8 bits mode: converts 10 bits of imaging chip's ADC to 8 bits of output
Pixel rates:
4 — 114 MHz
Exposure range (at maximum resolution), ms:
min: 0.0295 (at 114 MHz); max: 1000 (at 4 MHz)
Pixel gain control:
Programmable hardware gain controls:
analog (from 1 to 8) digital (from 1 to 15.875) Output window modes:
View port (from 1600 × 1200 to 8 × 8 with 4 pixels/2 lines step positioning)
Frame Decimation: (1:1 to 1:32) hardware Frame Binning: (1:1 to 1:32) hardware Horizontal and Vertical flipping, hardware Gamma, brightness and contrast control:
Programmable with lookup table
Imaging ChipType:
Monochrome 2 megapixel CMOS sensor with an optical format of 1/1.8 inch manufactured by E2V
Pixel size:
4.5 µm × 4.5 µm
Image array size:
9 mm diagonal
Shutter:
Rolling, Global Shutter
Scanning mode:
Progressive
ADC resolution:
10 bits
Responsivity:
7400 LSB10/(Lux/s)
Dynamic Range:
>66 dB
>90 dB in HDR mode Camera ElectricalSupply voltage:
5 V supplied by USB 3.0 interface
Power consumption:
less than 1 W (depends on operating modes)
Camera Interface Interface Type:
USB 3.0
Connector Type:
USB 3.0 micro-B with locking screws USB 2.0 HighSpeed interface, micro-B connector compatible |
||||||||||
| SMX-16E2C | 2 Mpixel CMOS | 1/1.8 " | 1600 × 1200 | 4.5 × 4.5 | Rolling, Global Shutter | 50 | Color | Selectable, 8 bits or 10 bits |
C/CS | |
|
Color 2 megapixel (1600 × 1200) CMOS camera with USB 3.0 interface. Designed for industrial and scientific applications
US $890What's in the box:
Output Video and Camera ControlMaximum resolutions of output window:
1600 × 1200
Frame rate at resolution (114 MHz):
50 fps at 1600 × 1200
60 fps at 1280 × 1024 82 fps at 1024 × 768 126 fps at 640 × 480 Output bits per pixel:
Selectable, 8 bits or 10 bits
Lookup table:
Downloadable for user selected 8 bits mode: converts 10 bits of imaging chip's ADC to 8 bits of output
Pixel rates:
4 — 114 MHz
Exposure range (at maximum resolution), ms:
min: 0.0295 (at 114 MHz); max: 1000 (at 4 MHz)
Pixel gain control:
Programmable hardware gain controls:
analog (from 1 to 8) digital (from 1 to 15.875) Output window modes:
View port (from 1600 × 1200 to 8 × 8 with 4 pixels/2 lines step positioning)
Frame Decimation: (1:1 to 1:32) hardware Frame Binning: (1:1 to 1:32) hardware Horizontal and Vertical flipping, hardware Gamma, brightness and contrast control:
Programmable with lookup table
Imaging ChipType:
Color 2 megapixel CMOS sensor with an optical format of 1/1.8 inch manufactured by E2V
Pixel size:
4.5 µm × 4.5 µm
Image array size:
9 mm diagonal
Shutter:
Rolling, Global Shutter
Scanning mode:
Progressive
ADC resolution:
10 bits
Responsivity:
7400 LSB10/(Lux/s)
Dynamic Range:
>66 dB
>90 dB in HDR mode Camera ElectricalSupply voltage:
5 V supplied by USB 3.0 interface
Power consumption:
less than 1 W (depends on operating modes)
Camera Interface Interface Type:
USB 3.0
Connector Type:
USB 3.0 micro-B with locking screws USB 2.0 HighSpeed interface, micro-B connector compatible |
||||||||||
| SMX-20S12M | 12.3 Mpixel CMOS | 1.1 " | 4096 × 3000 | 3.45 × 3.45 | Global Shutter | 15 | Mono | Selectable, 8 bits or 12 bits |
C | |
| NEW! |

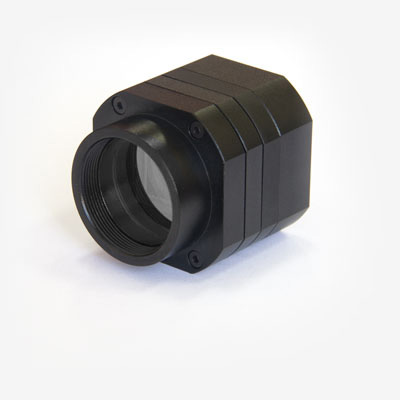

 Monochrome 12.3 megapixel (4096 × 3000 px) CMOS camera with USB 3.0 interface. Designed for industrial and scientific applicationsUS $4345What's in the box:
Output Video and Camera ControlMaximum resolutions of output window:
4096 × 3000
Frame rate at resolution (114 MHz):
15 fps at 4096 × 3000
23 fps at 2592 × 1944 37 fps at 1600 × 1200 57 fps at 1024 × 768 83.5 fps at 640 × 480 Output bits per pixel:
Selectable, 8 bits or 12 bits
Lookup table:
Downloadable for user selected 8 bits mode: converts 12 bits of imaging chip's ADC to 8 bits of output
Pixel rates:
5 — 100 MHz
Pixel gain control:
Programmable hardware gain controls:
Analog gain: from 0 to 24 with increment 0.1 dB from 24.1 to 48 with increment 24 dB Digital gain: from 0.1 to 24 with increment 0.1 dB Output window modes:
View port (from 4096 × 3000 to 320 × 240 with 4 pixels/2 lines step positioning)
Frame Decimation: (1:1, 1:2) hardware Frame Binning: (1:1, 1:4) hardware Horizontal and Vertical flipping, hardware Gamma, brightness and contrast control:
Programmable with lookup table
Imaging ChipType:
Monochrome 12.3 megapixel CMOS sensor with an optical format of 1.1 inches manufactured by Sony
Pixel size:
3.45 µm × 3.45 µm
Image array size:
17.6 mm diagonal
Shutter:
Global Shutter
Scanning mode:
Progressive
ADC resolution:
12 bits
Dynamic Range
71 dB
Camera ElectricalSupply voltage:
5 V supplied by USB 3.0 interface
Power consumption:
less than 4.5 W (depends on operating modes)
Camera Interface Interface Type:
USB 3.0
Connector Type:
USB 3.0 micro-B with locking screws |
|||||||||
| SMX-20S12C | 12.3 Mpixel CMOS | 1.1 " | 4096 × 3000 | 3.45 × 3.45 | Global Shutter | 15 | Color | Selectable, 8 bits or 12 bits |
C | |
| NEW! |
 Color 12.3 megapixel (4096 × 3000 px) CMOS camera with USB 3.0 interface. Designed for industrial and scientific applicationsUS $4345What's in the box:
Output Video and Camera ControlMaximum resolutions of output window:
4096 × 3000
Frame rate at resolution (114 MHz):
15 fps at 4096 × 3000
23 fps at 2592 × 1944 37 fps at 1600 × 1200 57 fps at 1024 × 768 83.5 fps at 640 × 480 Output bits per pixel:
Selectable, 8 bits or 12 bits
Lookup table:
Downloadable for user selected 8 bits mode: converts 12 bits of imaging chip's ADC to 8 bits of output
Pixel rates:
5 — 100 MHz
Pixel gain control:
Programmable hardware gain controls:
Analog gain: from 0 to 24 with increment 0.1 dB from 24.1 to 48 with increment 24 dB Digital gain: from 0.1 to 24 with increment 0.1 dB Output window modes:
View port (from 4096 × 3000 to 320 × 240 with 4 pixels/2 lines step positioning)
Frame Decimation: (1:1, 1:2) hardware Frame Binning: (1:1, 1:4) hardware Horizontal and Vertical flipping, hardware Gamma, brightness and contrast control:
Programmable with lookup table
Imaging ChipType:
Color 12.3 megapixel CMOS sensor with an optical format of 1.1 inches manufactured by Sony
Pixel size:
3.45 µm × 3.45 µm
Image array size:
17.6 mm diagonal
Shutter:
Global Shutter
Scanning mode:
Progressive
ADC resolution:
12 bits
Dynamic Range
71 dB
Camera ElectricalSupply voltage:
5 V supplied by USB 3.0 interface
Power consumption:
less than 4.5 W (depends on operating modes)
Camera Interface Interface Type:
USB 3.0
Connector Type:
USB 3.0 micro-B with locking screws |
|||||||||
System Requirements
Operating System:
Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows 7, Windows 8, Windows 8.1, Windows 10, Linux Ubuntu
Recommended configuration
Cameras will function with nominal frame ratesMinimal configuration
Cameras will function with reduced frame ratesProcessor:
Intel i7-3770, Samsung Exynos5422 Cortex™-A15 2.0Ghz quad core, Cortex™-A7 quad core
PIV 2Ghz
RAM:
4GB DDR3
2048 Mb
Video Card:
Any with 24 bit True Color
Any with 24 bit True Color
Hardware Interface:
Intel integrated USB 3.0 Host Controller. At least one USB 3.0 port for connection
Any USB 2.0 Host Controller. At least one USB 2.0 port for connection
Hard Drive:
SSD (write speed 150 MB/s minimum)
N/A
